37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes

  • 1
  • 2
  • 3

Price : Negotiable

Packaging Details : Wooden case

Light resistance : 180000Lux

Visual accuracy : ≤0.5mm

Certification : ISO9001

Power supply : Three-phase five-wire system, 3×380V±10%/50HZ

Arm span : 2010mm

Payment Terms : L/C, T/T

Near field of view : 461×255mm@300mm

Delivery Time : 60 days

Repeatability : ±0.07mm

Supply Ability : 200 sets/year

Load capacity : 12kg

Degrees of freedom : 7 axis

MOQ : 1 set

Place of Origin : China

Brand Name : Auten

Contact Now

37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes

Product Parameters:

Category Content Main Technical Parameters Remark
Robot performance Arm span 2010mm —
Repeatability ±0.07mm —
Load capacity 12kg —
Visual performance Near field of view 461×255mm@300mm —
Far field of view 1150×660mm@800mm —
Z-axis single-point repeatability 0.015mm@300mm0.1mm@800mm —
Visual accuracy ≤0.5mm —
Full frame acquisition time 0.2-0.8s(Full frame rate Max:6FPS) —
Light resistance 180000Lux —
Overall parameters Power supply Three-phase five-wire system 3×380v±10%/50HZ —
Degrees of freedom Adapt to workpiece conditions —
Number of robots configured single unit single unit two units Four units Depends on the design
Total power consumption 34kw 37kw 68kw 136kw Corresponding to different configuration quantities
Floor area (4m + track length) × (3 + rail spacing) × 3.5m —

37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes

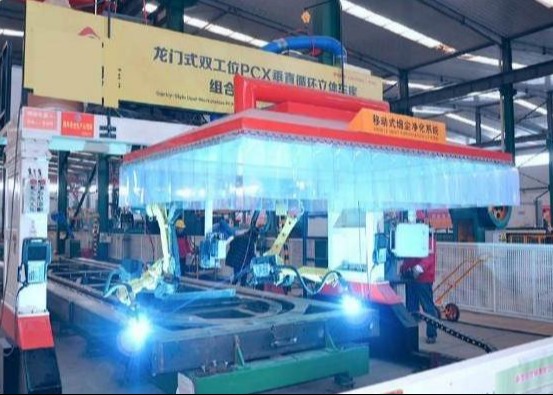

This gantry-mounted welding robot adopts an inverted installation configuration, allowing multiple robotic units to operate cooperatively along the gantry beam for coordinated welding tasks.

37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes

The system supports synchronized X-, Y-, and Z-axis motion together with optional external extension axes, providing excellent flexibility for multi-angle welding of large and complex workpieces, including shipbuilding assemblies and heavy structural components. Depending on production requirements, the equipment can be configured as a single robotic unit, a dual-robot cell, or a four-robot coordinated system, substantially increasing welding productivity and manufacturing efficiency. By combining servo-driven zero-backlash reducers with a programming-free intelligent control platform, the robot automatically generates optimized welding paths and performs real-time seam tracking, ensuring accurate torch positioning, consistent weld trajectories, and reliable welding quality throughout the production process.

37KW Power CNC Gantry-Type Welding Robot With Optional External Extension Axes
