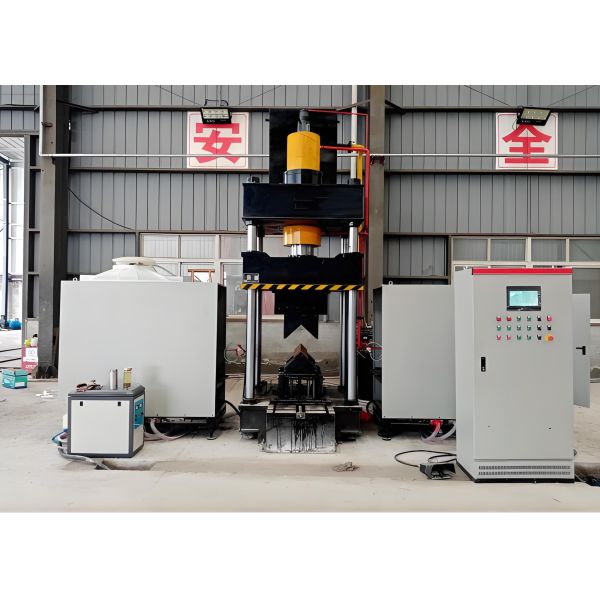

Advanced CNC Heating Bending Machine For Angle & Plate With 240 KW Heating Power
Product Introduction:
Mainly used for angle steel bending and plate bending.
Product configuration:
| Model |
HQ360-900 |
| Oil Tank Pressure (kN) |
3150 |
| Outside double-sided bending size (Heel up ) (mm) |
L80*7~L360*40 |
| Outward double-sided bending degree for angles (°) |
30° |
| Angle steel forward single bending range (mm) |
L100*10~L300*30 |
| Angle steel forward single bending degree (°) |
20° |
| Bending Plate thickness (mm) |
2~20 |
| Bending Plate width (mm) |
900 |
| Bending degree for plates (°) |
90° |
| Angle opening & closing range (mm) |
L100*10~L300*30 |
| Angle opening & closing degree (°) |
16° |
| Oil Tank Stroke (mm) |
950 |
| Max.opening height (mm) |
1400 |
| Motor Power (kW) |
22 |
| Heating power (kW) |
120*2 |
| CNC Axis |
3 |
| Oil tank capacity (L) |
720 |
| Overall size (m) |
4.2x4.5x4.1 |
Product Features:
1. The machine is configured with a high-performance CNC control system and an integrated touchscreen Human–Machine Interface (HMI), enabling efficient parameter entry, real-time process monitoring, and continuous supervision of equipment operating status. This intelligent control configuration facilitates convenient operation, streamlines production management, and enhances overall manufacturing efficiency.
2. The equipment incorporates advanced ultrasonic-frequency induction heating technology, providing rapid heating, efficient energy utilization, and environmentally compliant operation. This advanced heating solution increases production capacity, reduces energy consumption, and supports the requirements of modern sustainable manufacturing.
3. Developed as an integrated multifunctional forming system, the machine consolidates various forming operations within a single unit without requiring additional tooling or dedicated forming dies. This integrated configuration simplifies production setup, reduces tooling-related costs, and enhances manufacturing flexibility.
4. Through advanced CNC positioning and precision motion-control technology, the machine accurately controls bending angles and forming dimensions. This ensures consistent product quality, excellent repeatability, high forming precision, and improved overall production efficiency.
5. The equipment is equipped with an independent hydraulic power unit and an integrated electrical control system, providing dependable operating performance, enhanced safety, convenient maintenance, and reliable service under continuous heavy-duty industrial conditions.
6. The cold-forming function is suitable for processing angle steel profiles up to L100 × L100 × 10 mm, with a maximum bending angle of 5°. This configuration provides precise deformation control, excellent dimensional accuracy, and consistent forming results.
7. Under standard operating conditions, the cold-forming cycle is approximately 10 seconds per workpiece, while the thermal forming cycle generally requires approximately 120 seconds, depending on material properties and workpiece dimensions. Hot forming is initiated when the workpiece reaches approximately 800°C (red-hot condition), with heating parameters automatically configured according to the material characteristics and specified bending requirements.
8. During thermal forming, operators only need to enter the required process parameters and initiate the automatic cycle using either the start button or foot switch. The machine subsequently executes the complete forming sequence automatically, including induction heating positioning, controlled heating, automatic retraction of the heating assembly, hydraulic forming, ram return, and finished workpiece discharge.
9. In combined hot- and cold-forming mode, the machining cycle begins immediately after the required process parameters are entered. The hydraulic ram remains in the forming position, while the lower forming die automatically rises by approximately 100 mm to provide adequate clearance for rapid workpiece removal. This optimized operating sequence effectively reduces cycle time and further enhances overall production efficiency.
The demonstration workpieces are produced by the*CNC Angle Steel Punching, Marking, and Cutting Production Line in accordance with the standard specifications and manufacturing practices widely adopted in the transmission tower industry. These representative samples allow customers, engineers, and quality inspectors to evaluate machining accuracy, dimensional precision, surface finish, and overall processing quality, clearly demonstrating the machine's capability to meet the demanding manufacturing requirements of transmission tower fabrication.
In Ultra-High-Voltage (UHV) power transmission projects, where transmission towers must withstand harsh environmental conditions and heavy structural loads throughout their operational lifespan, this equipment performs a critical manufacturing function. It accurately processes the angle steel components that form the primary load-bearing framework of transmission towers by carrying out high-precision drilling and punching on tower legs, cross-arms, and other essential structural members. The system ensures precise hole locations, reliable assembly accuracy, and outstanding dimensional consistency, thereby improving structural integrity, operational safety, and long-term service performance. As a result, it provides a highly dependable manufacturing solution for modern UHV transmission infrastructure and large-scale tower production.
